Straight connection joint

Retroceder

  • Low voltage 0,6/1 (1,2) kV, Telecommunication and Signalisation
  • Inside / outside underground, above ground, underwater, in cable ducts
Descargar hoja de producto
  • Cable joint type tested according to: EN 50393:2006-11
  • Resin type tested according to: IEC60455-3-8:2013

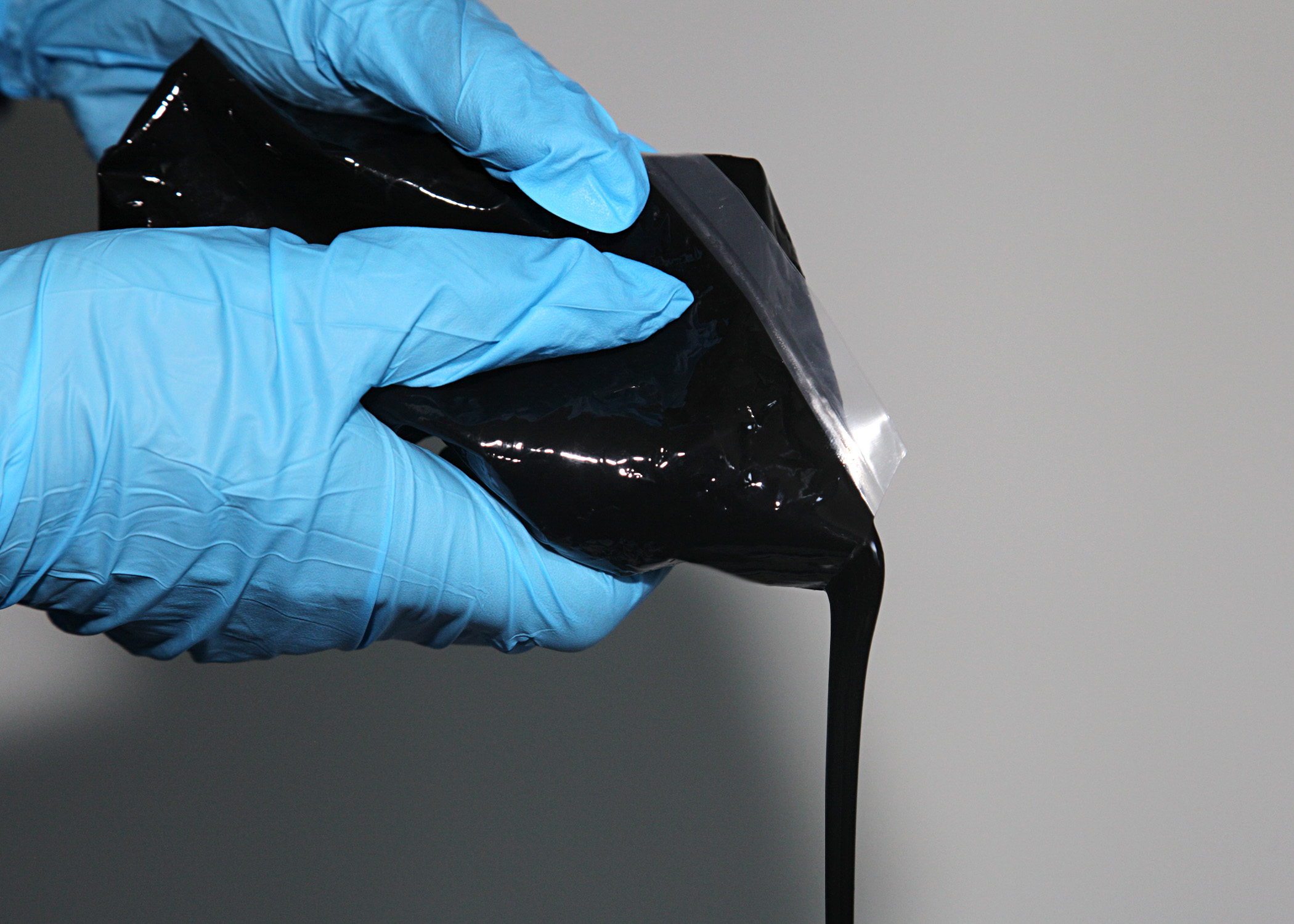

  • Hydrolysis resistant polyurethane resin in transparant 2-component bag
  • Strong transparant snaplock shells
  • Fully waterproof, no leakage of liquid resin
  • Distance spacers included (version 4x10mm² - 4x25mm²)
  • Complete kit, sealing tape, sandpaper, and protective gloves inclusive
  • Installation instruction with clear drawings
  • Easy and quick installation
  • Connectors and/or earthing kits available on request
  • Other shell size dimensions available on request
Más Información
Más información

Download: Mixing instructions

Instructions

Home page product list No
Solicitar productos
Elementos de artículos agrupados
SKU Nombre del producto Diámetro del cable (mm) Dimensiones (mm)

Enter the quantities you want to order / request.


Keep the quantities equal to the Order unit

Order unit
Cantidad
80163 Straight connection joint till 4x6mm² Ø 06 - 28 L189 x Ø40 Order unit per piece
80164 Straight connection joint till 4x16mm² Ø 12 - 32 L250 x Ø50 Order unit per piece
80164B Straight connection joint till 4x25mm² Ø 10 - 34 L320 x Ø60 Order unit per piece
80165 Straight connection joint till 4x50mm² Ø 26 - 53 L355 x Ø72 Order unit per piece
8.000907 Straight connection joint till 4x95mm² Ø 30 - 48 L450 x Ø75 Order unit per piece
8.000908 Straight connection joint till 4x150mm² Ø 32 - 68 530 x 132 Order unit per piece
8.000909 Straight connection joint till 4x240mm² Ø 45 - 70 L700 x Ø155 Order unit per piece
