Sealing plugs

Retroceder

Filoform sealing plugs have been developed to provide an effective and simple solution to all splash water and dirt tight sealing requirements in HDPE ducts, protective sleeves and diamond-drilled ducts.

The sealing plugs are standard dirt and splash watertight. After mounting with sealing compound Filoform Fill & Seal (art.nr. 80840) the Filoform sealing plugs easily exceed the specifications of NEN 2768.

The Filoform sealing plugs are made from a high quality TPE, this material has a hardness of 40 Shore A.

Descargar hoja de producto
  • Formed from one part
  • Easy to install
  • Durable sealing
  • made from high quality TPE
Image Item number Duct Recesses
type 3 822252 25/20mm HDPE duct 3,5-4,5mm + 7mm
type 3 7mm

43200

25/20mm HDPE duct

7mm (coax 9/12)

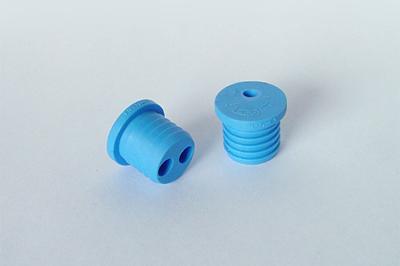

type 3 7mm

822620

25/20mm HDPE duct

7mm (coax 9/12)
with slit

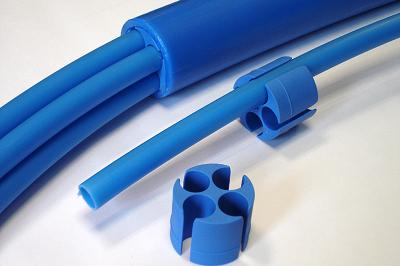

822614 822614 40mm HDPE duct 4x12mm

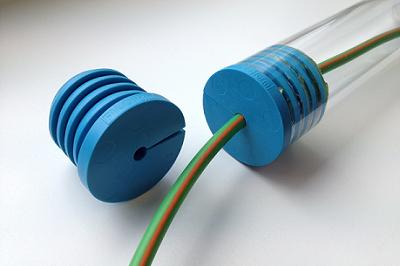

Plug coax 9/12

822503

50/43,6mm PVC duct

7mm (coax 9/12)
with slit

Plug coax 9/12

822504

50/43,6mm PVC duct 10,5mm (coax 6)
with slit
50/43,6 14mm 822502  50/43,6mm PVC duct 14mm
with slit
50/43,6 25mm 822501 50/43,6mm PVC duct 25mm

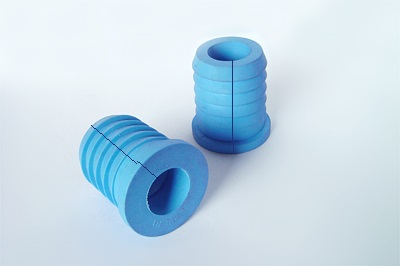

50/43,6 25mm 822501D 50/43,6mm PVC duct 25mm
with slit

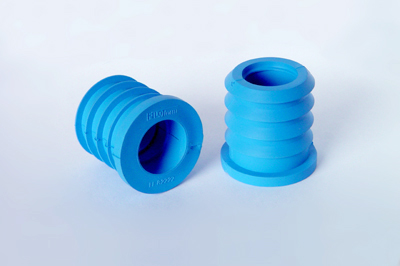

58/50 32mm 82222 58/50mm duct 32mm
  • Material : TPE
  • Hardness : 40 Shore A
Más Información
Home page product list No
Solicitar productos
Elementos de artículos agrupados
SKU Nombre del producto

Enter the quantities you want to order / request.


Keep the quantities equal to the Order unit

Order unit
Cantidad
43200 Sealingplug 25/20 1x7mm Order unit 300 pcs/carton
822620 Sealingplug 25/20 1x7mm with slit Order unit 300 pcs/carton
43202 Sealingplug 25/20 1x10,5mm (Coax 6) Order unit 300 pcs/carton
822614 internal plug 40mm HDPE 4x12mm Order unit Bajo pedido
822503 Sealingplug 50/43,6mm-7mm Order unit 50 pcs/carton
822504 Sealingplug 50/43,6mm-10,5mm Order unit 50 pcs/carton
822502 Sealingplug 50/43,6mm-14mm Order unit 50 pcs/carton
822501 Plug 50/43,6mm-25mm (Type 4) Order unit 25 pcs/carton
822501D Plug 50/43,6mm-25mm Divisible Order unit 25 pcs/carton
82222 Sealingplug 58/50mm-32mm Order unit 15 pcs/carton
Solicitar productos
