QUICKI branch off joint up to 25/16mm²
The gel-filled cable joint technique is a new system with special advantages. It is quick and easy to install and reduces the chance of assembly errors. The impact-resistant case is connected by a hinge for easy installation.
The QUICKI cable joint is suitable as jointing and as branch-off. The cable joint comes with a 5-pole connector block included allen wrench. After closing the cable joint the special gel flows together and ensures a good sealing and insulation of the connection. After installation, the cable joint can be put directly in use.
- No special tools required
- Good adhesion to metals and plastics
- Approved in accordance with EN 50393
- UV-resistant
- Shells made of hit-proof, halogen-free PP
- With double-seal
- With 5-core screw connector block
- High temperature resistant GEL Type GQ, from -40°C to +140°C
- Tested according EN 50393 type 1 and 2
Application
- In water, ground, outdoor and installation ducts
Advantages
- No special tools required
- Good adhesion on all surfaces and cables
- High strain relief on the cables
- Suitable for re-opening
| Un-armoured cable | Cable ⌀ mm | Dimensions L x B x H mm | Article number | Type | ||
|---|---|---|---|---|---|---|
| Straight connection max. mm² | Branch off max. mm² | |||||
| Main | Branch | |||||

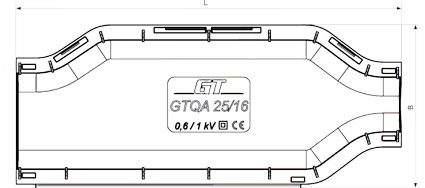

| 5 x 16 – 25 | 5 x 16 | 5 x 16 – 16 | 18 - 33 | 275 x 120 x 47 | 000 947 | GTQA 25/16 |
Set content:
- GEL-filled cable joint
- Connector block with allen key
- Cable ties
- Mounting instruction
| Material scales | halogen-free PP |
| Material GEL Type GQ | Silicon |
| Temperature range GEL | -40°C / +140°C |
| IP-Value | IP 68 in accordance with EN 60529: 1989 + A1: 1999 |
| Tested | DIN EN 50393 Type 1 & Type 2 |
