FttH entry 90°

Retroceder

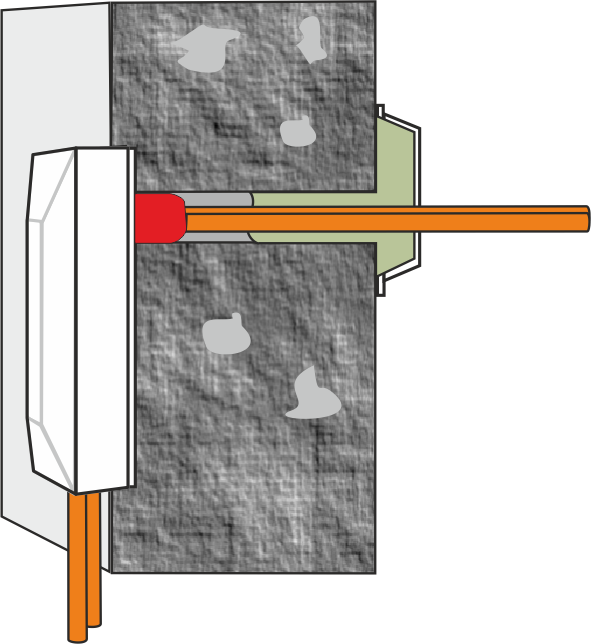

Entry cover with a 90° bend radius to allow safe and secure bending of micro ducts / cables and blowing of the fibre after installation.

The 90° entry cover can be used with mirco duct / cable sizes up to 12mm and includes space to accomodate a gas block connector.

To create a gas- and watertight seal in the duct opening we recommend the use of Filoform sealing paste MD+. The MD+ sealant is included in item 80218 & 80222.

Descargar hoja de producto

80217

  • Micro duct / cable sizes up to 12mm.
  • Suitable for retrofitting.
  • Screw mounted or optionally invisible mounted with the use of Filoform fixing anchor.
  • Screw and plug are not included.
  • Break out cover to accommodate a 16mm protective pipe in the cover.
  • Flame retardant
  • Suitable for indoor and outdoor use
  • UV- and weatherability.
  • Also available in kits together with MD1-FttH duct seal (80219.3 / 80219.6 / 80217.2).

Selection chart FttH entry 90°

Diameter microduct/cable Diameter bore hole Item number
4mm - 8mm 10mm - 25mm 80218
10mm - 12mm 22mm - 32mm 80222
2x7mm 22mm - 32mm 80222

Dimensions

FttH entry 90° 1x4-8mm 121mm x 44mm x 26mm
FttH entry 90° 1x10-12 / 2x7mm 160mm x 40mm x 40mm

Material specifications

  • PC/ASA
  • UV resistant
  • Colour: white, similar to RAL 9010
  • Temperature range -20°C up to + 50°C

Set contents

Item nr. 80218
Item nr. 80222
FttH entry 90° 1x4-8mm FttH entry 90° 1x10-12 / 2x7mm
  • 25x entry cover 90°
  • MD+ cartridge 310ml
  • 6x entry cover 90°
  • MD+ cartridge 310ml
Item nr. 80219.3
Item nr. 80219.6
SET - MD1-FttH + FttH entry 90° for 1x4-8mm SET - MD1-FttH + FttH entry 90° for 1x10-12mm
  • FttH entry 90° 1x4-8mm
  • MD1-FttH cap
  • Anchoring pin (small)
  • 2K syringe 25ml - PU resin type 2235
  • Static mixer
  • Gloves
  • Abrasive cloth
MD+ not included. Sold seperately - item 80849
  • FttH entry 90° 1x10-12
  • MD1-FttH cap
  • Anchoring pin (small)
  • 2K syringe 25ml - PU resin type 2235
  • Static mixer
  • Gloves
  • Abrasive cloth
MD+ not included. Sold seperately - item 80849
Art.nr. 80217.2

SET - MD1-FttH + FttH entry 90° for 2x7mm
  • FttH entry 90° 1x10-12/2x7mm
  • MD1-FttH cap
  • Anchoring pin (small)
  • 2K mixing pouch 101gr., PU resin type 2234
  • Opening nozzle
  • Gloves
  • Abrasive cloth
MD+ not included. Sold seperately - item 80849

Solicitar productos
Elementos de artículos agrupados
SKU Nombre del producto Diámetro de conducto mín.-máx. (mm) Diámetro máximo del cable en el conducto (mm)

Enter the quantities you want to order / request.


Keep the quantities equal to the Order unit

Order unit
Cantidad
80218 FttH entry 90° 1x4-8mm (MD+) Ø 10-25 4-8 Order unit set 25 pcs. + 1 cartridge MD+ sealant 310ml
80222 FttH entry 90° 1x10-12 / 2x7mm Ø 22-32 10-12 Order unit set 6 pcs. + 1 cartridge MD+ sealant 310ml
80217.2 SET - MD1-FttH + FttH entry 90° for 2x7mm Ø 22-32 2x7mm Order unit per set
80219.3 SET - MD1-FttH + FttH entry 90° for 1x4-8mm Ø 16-20 4-8 Order unit per set
80219.6 SET - MD1-FttH + FttH entry 90° for 1x10-12mm Ø 22-25 10-12 Order unit per set
