Divisible mini/micro duct seal 5mm

Retroceder

For easy gas- and watertight sealing of cables in miniducts.

The miniduct seal is easy to mount on new installations and existing installations. Thanks to the clever design, shifting the seal over the fiber now belongs to the past. Due to the compact design this seal can be installed in every situation, even in locations with difficult access.

Descargar hoja de producto
  • Gas- and water tight up to 0,5 bar
  • Suitable for retro fitting
  • Easy installation
  • No need to slide the seal over the glass fibre for installation
  • Slim design
  • Other versions available upon request


Click here to select the correct product

Selection table



Properties Value
Dimensions 21mm x 10mm
Plastic housing PC based
Sealing plug TPE
Sealing up to 0,5 bar

Pull strenght duct seal from the duct

Duct size Tensile force
OD 823554.x 823555.x 823556.x 823557.x 823558.x 8235510.x
4mm ≥40 N
5mm   ≥50 N
6mm     ≥60 N
7mm       ≥70 N
8mm         ≥80 N
10mm           ≥100 N
Values are indications, true values may depend on cables, duct and field installations.
The measure-speed is 100mm/min
Temperature 20°C


miniduct

Más Información
Más información

miniduct seal

Home page product list No

Click here to download the video.

Solicitar productos
Elementos de artículos agrupados
SKU Nombre del producto Color

Enter the quantities you want to order / request.


Keep the quantities equal to the Order unit

Order unit
Cantidad

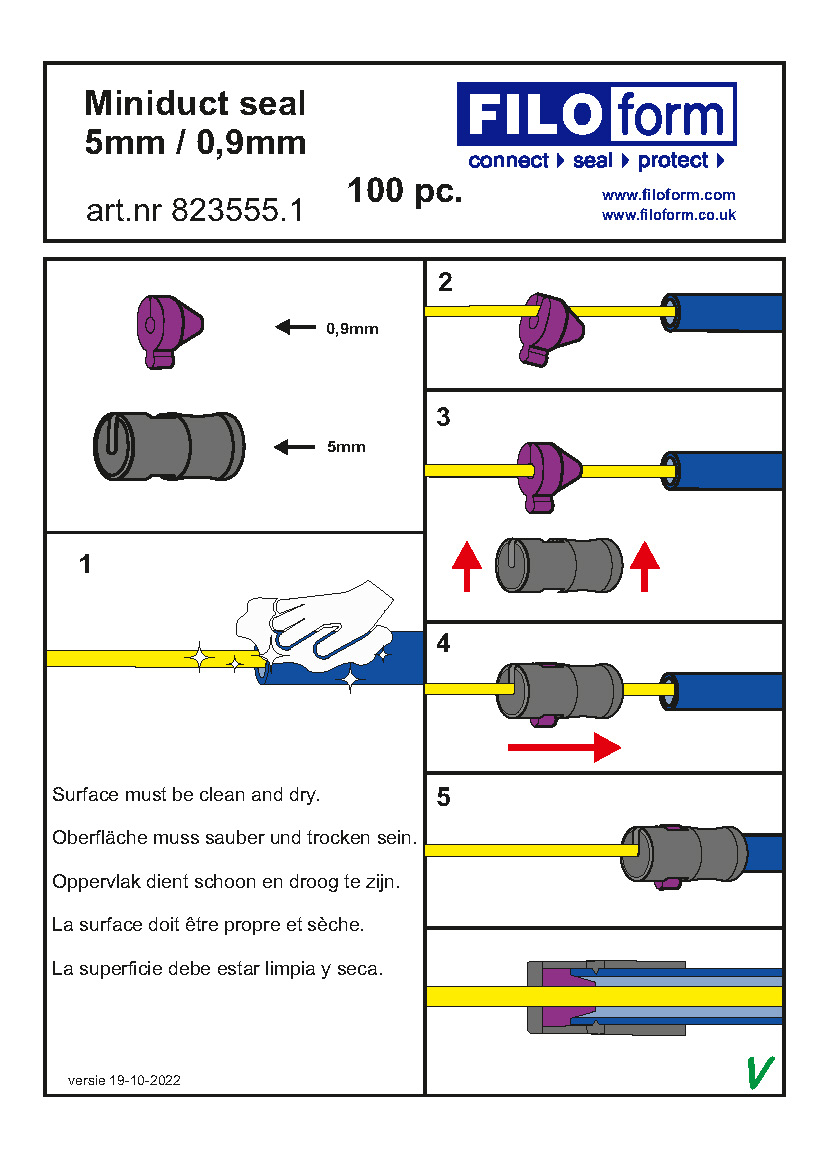

823555.1 Miniduct seal 5mm/0,9mm violeta Order unit 100 pcs/bag
823555.2 Miniduct seal 5mm/1,25mm rojo Order unit 100 pcs/bag
823555.3 Miniduct seal 5mm/1,6mm verde Order unit 100 pcs/bag
823555.35 Miniduct seal 5mm/2,1mm azul Order unit 100 pcs/bag
823555.4 Miniduct seal 5mm/2,5mm amarillo Order unit 100 pcs/bag
