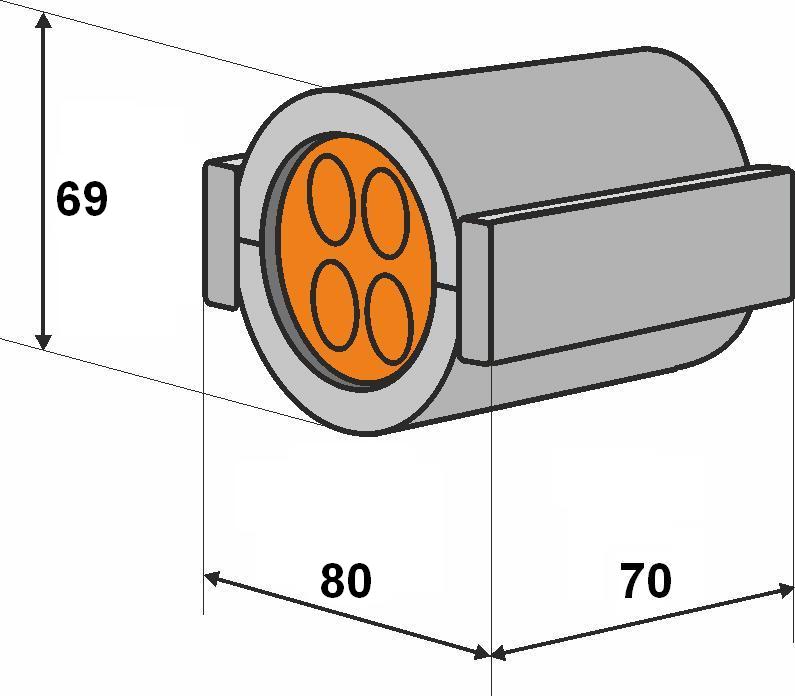

Divisible duct seals 63mm

Retroceder

Suitable for gas and watertight sealing of 63mm HDPE ducts, which contain mini ducts and / or (fibre optic) cables.

The modular system will guarantee easy installation of various different cable and duct configurations. Our system is divisible so can be applied at installation or afterwards.

The rubber inserts can be custom designed for your specific needs and configuration and will contain (temporary) blind plugs to make the system more flexible at the installation site.

Descargar hoja de producto
  • Gas and watertight ≥ 0,25 bar.
  • Suitable for retrofitting.
  • Easy installation.
  • Slim design.
  • Includes cores of the recesses
  • Other versions available upon request.

63mm ductsealing

Plastic scales glassfibre reinforced
Closing key glassfibre reinforced
Sealing plug EPDM
Sealing up to 0,25 bar
Pull-out force duct seal vs duct ≥ 1200N
Más Información
Más información

Contents

  • Plastic scales (2 items)
  • Closing keys (2 items)
  • Synthetic rubber plug for cavity shapes (1 item)
  • Illustrated installation instructions

Divisible duct seal

Home page product list No

Click here to download the video.

Solicitar productos
Elementos de artículos agrupados
SKU Nombre del producto Configuración

Enter the quantities you want to order / request.


Keep the quantities equal to the Order unit

Order unit
Cantidad
822664F Duct seal HDPE 63/22x7mm+1x12mm 22x7mm + 1x12mm Order unit 10 pcs/carton
822658F Duct seal HDPE 63/24x7mm 24x7mm Order unit 10 pcs/carton
822653F Duct seal HDPE 63/24x7mm+1x14mm 24x7mm + 1x14mm Order unit 10 pcs/carton
822668F Duct seal 63/15x10mm thin wall 15x10mm Order unit 10 pcs/carton
822675F Duct seal HDPE 63/9x12mm 9x12mm Order unit 10 pcs/carton
822665F Duct seal 63/12x12mm thin wall 12x12mm Order unit 10 pcs/carton
822654F Duct seal HDPE 63/7x14mm 7x14mm Order unit 10 pcs/carton
822677F Duct seal HDPE 63/6x16mm 6x16mm Order unit 10 pcs/carton
822689F Ductseal HDPE 63/7x16 mm 7x16mm Order unit 10 pcs/carton
822686F Ductseal HDPE 63/4x20mm 4x20mm Order unit 10 pcs/carton
