Divisible duct seals 50mm

Retroceder

Suitable for gas and watertight sealing of 50mm HDPE ducts, which contain mini ducts and / or (fibre optic) cables.

The modular system will guarantee easy installation of various different cable and duct configurations. Our system is divisible so can be applied at installation or afterwards.

The rubber inserts can be custom designed for your specific needs and configuration and will contain (temporary) blind plugs to make the system more flexible at the installation site.

Descargar hoja de producto
  • Gas and watertight ≥ 0,25 bar.
  • Suitable for retrofitting.
  • Easy installation.
  • Slim design.
  • Includes cores of the recesses
  • Other versions available upon request.

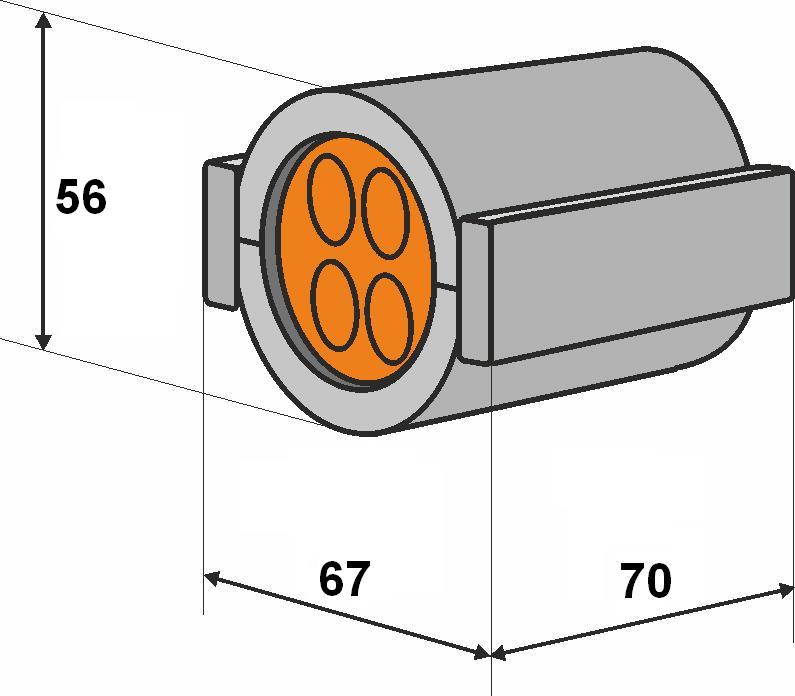

50mm ductsealing

Plastic scales glassfibre reinforced
Closing key glassfibre reinforced
Sealing plug EPDM
Sealing up to 0,25 bar
Pull-out force duct seal vs duct ≥ 1200N
Más Información
Más información

Contents

  • Plastic scales (2 items)
  • Closing keys (2 items)
  • Synthetic rubber plug for cavity shapes (1 item)
  • Illustrated installation instructions

Divisible duct seal

Home page product list No

Click here to download the video.

Solicitar productos
Elementos de artículos agrupados
SKU Nombre del producto

Enter the quantities you want to order / request.


Keep the quantities equal to the Order unit

Order unit
Cantidad
822671F Duct seal HDPE 50/7x7mm+1C8-18,5mm Order unit 10 pcs/carton
822684F Duct seal HDPE 50/8x7+1x16mm Order unit 10 pcs/carton
822670F Duct seal HDPE 50/8x7mm+1x14mm Order unit 10 pcs/carton
822651F Duct seal HDPE50/10x7mm+1x12mm Order unit 10 pcs/carton
822676F Duct seal HDPE 50/12x7mm+1x14mm Order unit 10 pcs/carton
822652F Duct seal HDPE 50/18x7mm Order unit 10 pcs/carton
822673F Duct seal HDPE 50/5x10mm+1C8-18,5mm Order unit 10 pcs/carton
822629F Duct seal HDPE 50 /7x10 mm Order unit 10 pcs/carton
822683F Duct seal HDPE 50/8x10mm Order unit 10 pcs/carton
822674F Duct seal 50/9x10mm thin wall Order unit 10 pcs/carton
8227004F Ductseal HDPE 50/1xC11-16-22mm+1xC11-16mm Order unit 10 pcs/carton
822672F Duct seal HDPE 50/5x12+1C8-18,5mm Order unit 10 pcs/carton
8227015F Duct seal HDPE 50 /5x12mm Order unit 10 pcs/carton
822650F Duct seal HDPE 50 /7x12mm Order unit 10 pcs/carton
822657F Duct seal 50/7x14mm thin wall Order unit 10 pcs/carton
822628F Duct seal 50 / 1x15,5mm+3x12mm Order unit 10 pcs/carton
822666F Duct seal HDPE 50/4x16mm Order unit 10 pcs/carton
822685F Ductseal HDPE 50/2x20mm Order unit 10 st./doos
8227009F Ductseal HDPE 50/1xC5-11mm Order unit 10 pcs/carton
