Slim Divisible duct seals 12mm

NEW - Introducing the new Duct Seal Slim 12mm from Filoform - designed to save you time and hassle. With its ultra slim design, this seal is not only robust but also provides a 2x faster installation time compared to conventional 12mm duct seals.

Descargar hoja de producto

Saltar al final de la galería de imágenes

Saltar al comienzo de la galería de imágenes

Rasgos

Gas and watertight up to 0.5 bar
Rubber with closed membrane
2 x faster installation, compared to conventional 12mm duct seals
Ultra slim, with robust design (25% reduced dimensions)
Suitable for retro fitting
Easy to install
Quick and easy to disassemble

Especificaciones

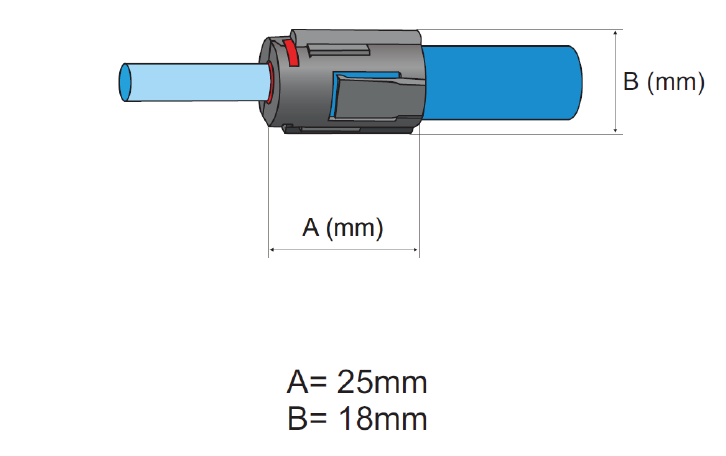

Dimensions	A (mm)	B (mm)	Weight (gr.)
Duct seal 12mm Slim	25	18	3,85

Material specification

Properties	Value
Plastic scales	glassfibre reinforced
Operating temperature	-20 up to +60 degrees
Sealing plug	TPV
Sealing	up to 0,5 bar
Pull-out force duct seal vs duct	≥ 120N
Mechanical compression strength	≥ 1000N, 10 sec.
Micro duct dimension	12/8mm

Más información

Más Información
Más información
Home page product list	No

Solicitar productos

Elementos de artículos agrupados
SKU	Nombre del producto	Color	Diámetro exterior del conducto (mm)	Diámetro del cable (mm)	Enter the quantities you want to order / request. Keep the quantities equal to the Order unit Order unit	Cantidad

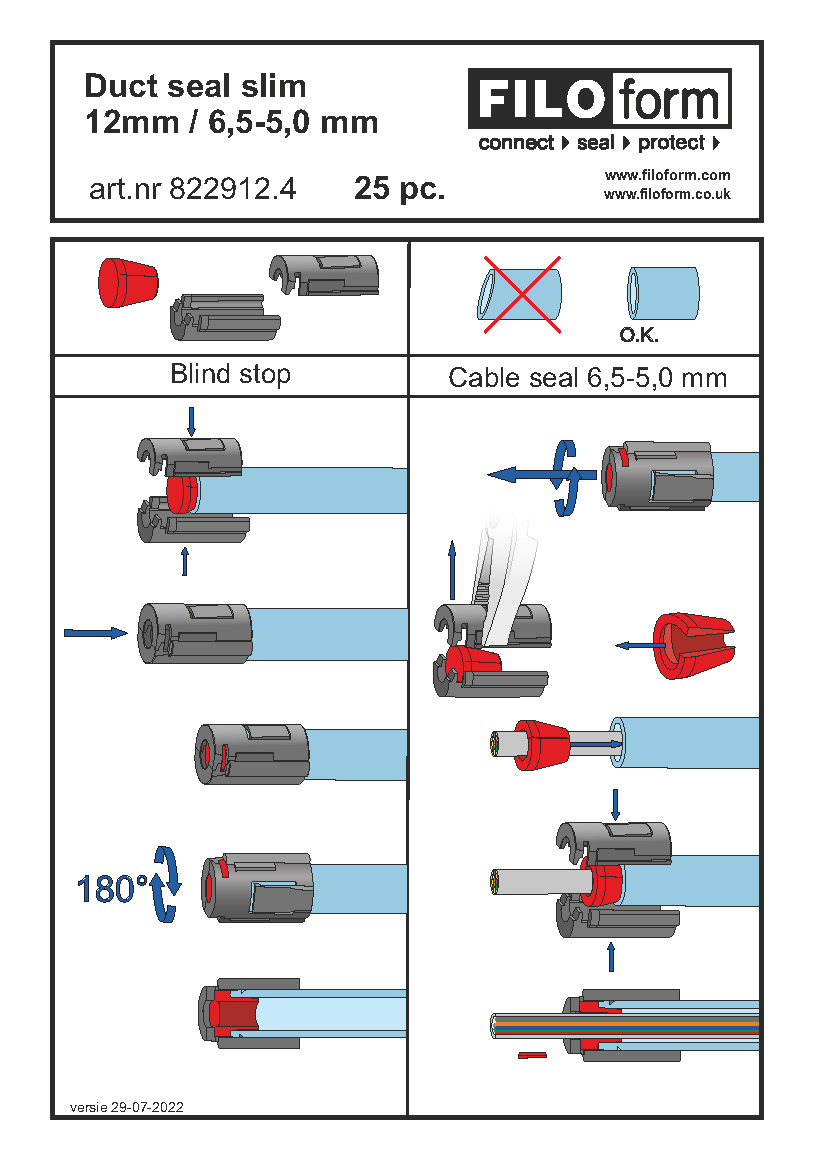

822912.4	Duct seal slim 12mm/6,5-5,0mm	rojo	12	6,5-5,0	Order unit 25 pcs/bag

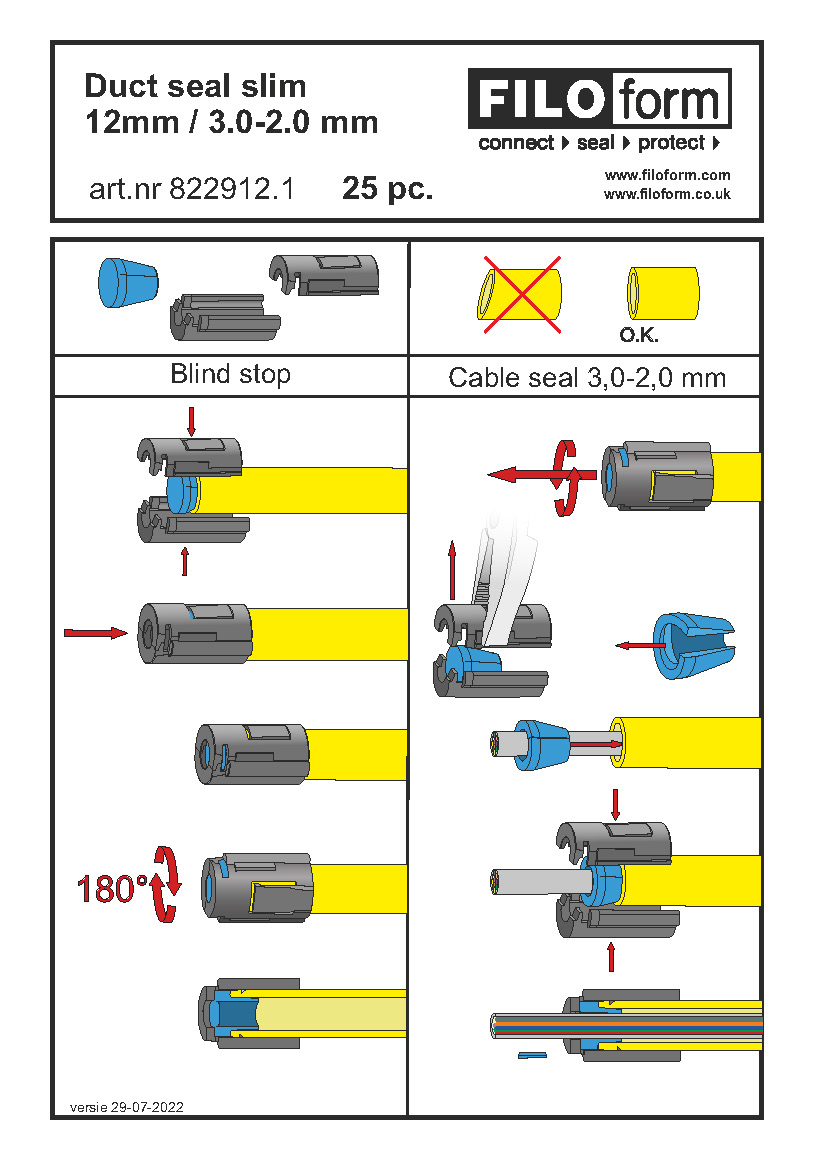

822912.1	Duct seal slim 12mm/3,0-2,0mm	azul	12	-	Order unit 25 pcs/bag

Solicitar productos
